Product Description

AIR YINI Commercial Swimming Pool Heat pump are specially designed and engineered for pool or spa water temperature control. Intelligent control system are let the units high efficiency and stable working performance.



The COP could be 6.8 which saves at least 80% energy compared with traditional electric swimming pool heating equipments.



Suitable for large pools in hotel, public parks, schools, sport center, gyms, etc.



enter, gyms, etc.



 Wholesale Constant Temperature Heater Swimming Pool Heat Pump



Main Features

1) PVC Titanium heat exchanger with full resistance against corrosion, more durable.



2) Compact structure, easy demountable for access.



3) High efficiency compressor, saving energy.



4) Flow switch for water flow protection.



5) Intelligent controller and adjustment by quick mind microprocessor.



6) Intelligent LCD display wired controller.



7) Air exchanger (fins-coil )with hydrophilic coating.



8) Automatic defrosting function included.



Optional: R410a, R32, R407c refrigerant is available.



Model	YINI-010-YC
Heating mode	Circulating
Ambient temp.range	-15~+43℃
Rated heating capacity	7.8KW
COP	6.7W/W
Rated input power	1.15KW
Max. Running Current	5.9A
Power supply	220V-240V 1N~50Hz
IP Code	IPX4
Safety function	High and low pressure protection, Overload protection, Temperature protection, Power phase sequence protection, etc.
Refrigerant type	R32
Compressor QTY	1 PCS
Compressor type	Scroll
outlet water temperature	28℃
Heat Exchanger	Titanium
Air Flow Direction	Horizontal
Automatic defrosting	by 4 way valve
Casing Material	ABS plastic
Rated water flow	2.5 m³/h
Air out type	Top discharge
Fan motor QTY	1 PCS
Noise	56 dB(A)
machine dimension (width × depth × high)	850×360×590 (mm)
Packing dimension (width×depth×high)	920×440×770 (mm)
Net weight	44kg
Gross weight	55kg

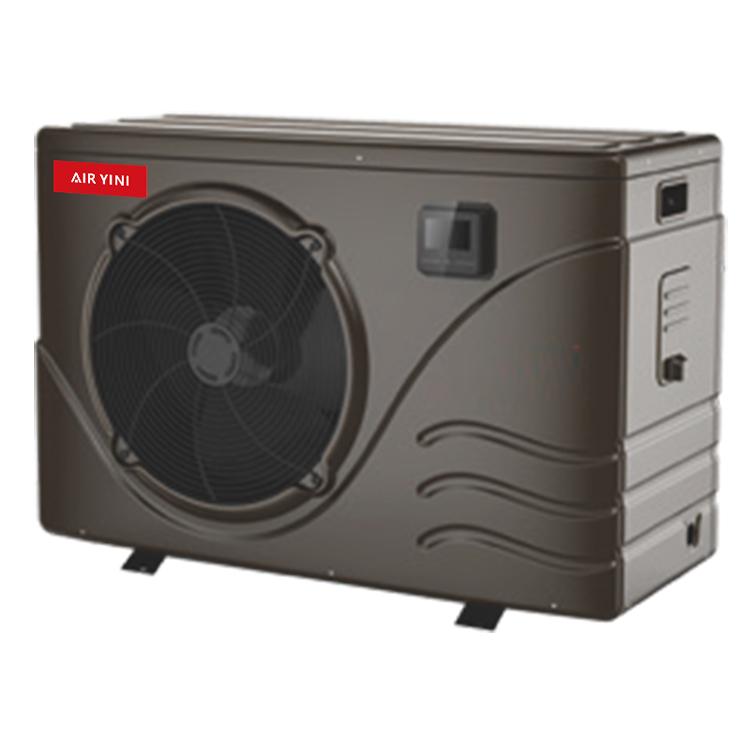

Product Image
